General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DISPL15MA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

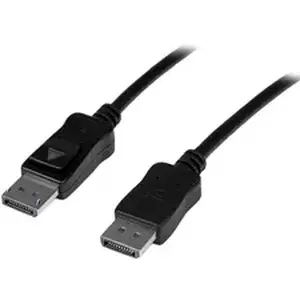

Product Name:15m Active DisplayPort Cable - M/M
Marketing Information:Connect DisplayPort®-equipped devices up to 15m away with no signal loss. The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560r-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 15-meter Active DisplayPort cable is backed by StarTech.com''s 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Video Cable
Technical Information
Cable Type:DisplayPort
Cable Length:49.21 ft
Connector Type on First End:DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End:DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:Nickel
Conductor:Copper
Shielding:Yes
Jacket Type:CMG
Device Supported:
- Audio/Video Device
- Audio Amplifier
- Projector
- Monitor
- Notebook
- Workstation
- Graphics Card
American Wire Gauge:32 AWG
Data Transfer Rate:21.6 Gbit/s
Supported Resolution:3840 x 2160
Features:
- Active
- Signal Booster
- Flexible
- HDCP
- DPCP
- Latching Connector
- EMI Protection
- Multi-Stream Transport (MST) Support
Physical Characteristics
Color Family:Black
Product Color:Black
Jacket Material:Polyvinyl Chloride (PVC)
Weight (Approximate):1.41 lb
Shipping Height:1.81"
Shipping Width:10.04"
Shipping Weight (Approximate):1.45 lb
Miscellaneous
Compatibility:FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Card
Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
