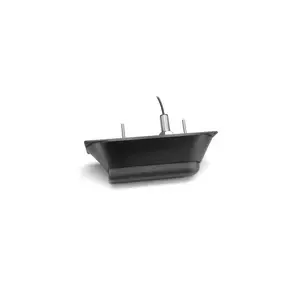

Garmin GT23M-TH - Stainless Steel, Thru-Hull Mount Transducer, Mid-Band CHIRP (80-160 kHz, 600 W)/CHIRP DownVu (260/455 kHz, 500 W) (8-pin)
Model: 010-012404-10GT23M-TH transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownVu scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP DownVu (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
Specifications| Traditional: CHIRP 80-160 kHz DownVu: CHIRP 245-275 kHz and CHIRP 445-465 kHz | |
| transmit power | Traditional: 600 W DownVu: 500 W |
| Maximum depth | Traditional: 1,800 ft DownVu: 1,000 ft |
| Beam Width ( deg) LF/HF (-3dB): | Traditional: 24/13 DownVu: 2.0x51@260 1.4x29@455 |
| Water temperature | Yes |
| Cable length | 30 feet |
| Dimensions | Transducer: 228 x 62 x 41 mm Transducer Stem: O24 x 135 mm Fairing block: 323 x 116 x 64 mm |
Garmin Usa, Inc 010-12404-10 Garmin GT23M-TH Thru Hull Transducer
