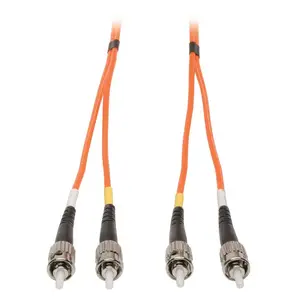

Tripp Lite N302-05M EATON, 5M DUPLEX MULTIMODE FIBER 62.5/125 PATCH CABLE ST 16FT

Premium PVC 62.5/125um multimode patch cables

• UPC Code: 037332124944
• Technology: Multimode
• Optical Mode: OM1
• Cable Jacket Color: Orange
• Connector Color: Black
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 62.5
• Number of Fibers: 2
• Cable Length (ft.): 16.4
• Cable Length (in.): 196.9
• Minimum Bend Radius: 20 mm (Dynamic); 10 mm (Static)
• Shipping Dimensions (hwd / in.): 0.10 x 4.40 x 6.40
• Shipping Weight (lbs.): 0.10
• Fiber Cable Length: 5M (16.4 ft)
• Operating Temperature Range: -4? to 140?F (-20? to 60?C)
• Storage Temperature Range: -4? to 140?F (-20? to 60?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Attenuation @ 850NM: 3.0 dB/km
• Insertion Loss: ≤ 0.20 dB
• Side A - Connector 1: ST DUPLEX (MALE)
• Side B - Connector 1: ST DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty
