Startech STC GLCLHSMDST .com Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LX/LH - For Optical Network,

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:GLCLHSMDST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

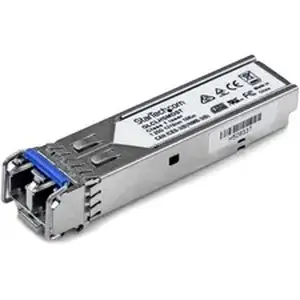

Product Name:Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LX/LH
Marketing Information:The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode
• Fiber Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 200,000 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:SFP (mini-GBIC)

Technical Information

---

Application/Usage:

• Optical Network
• Data Networking

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 1000Base-LX/LH Network

Media & Performance

---

Media Type Supported:Optical Fiber
Fiber Mode Supported:

• Multi-mode
• Single-mode

Ethernet Technology:1.25 Gigabit Ethernet
Network Technology:1000Base-LX/LH

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.3"
Width:0.5"
Depth:2.3"
Weight (Approximate):0.04 lb

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Firepower Switches:

• ASR920
• IE2000
• IE4000
• ASR1000

Country of Origin:China
Environmentally Friendly:Yes

Warranty

---

Limited Warranty:Lifetime
