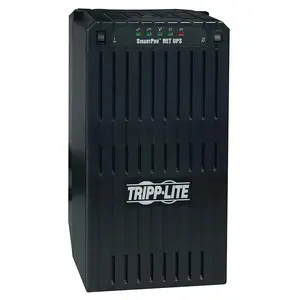

SMART2200NET intelligent line-interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half-load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700W power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes six protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via two built-in contact closure ports. PowerAlert(R) UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front-panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.
- UPC Code: 037332032041
- UPS Type: Line-Interactive
- Input Phase: Single-Phase
- Rated input current (Maximum Load): 15A
- Nominal Input Voltage(s) Supported: 120V AC
- UPS Input Connection Type: 5-15P
- Input Circuit Breakers: 20A
- UPS Input Cord Length (ft.): 8
- Recommended Electrical Service: 20A 120V
- Input Cord Length (ft.): 8
- Output Capacity (VA): 2200
- Output Capacity (kVA): 2.2
- Output Capacity (Watts): 1700
- Output Capacity (kW): 1.7
- Output Capacity Details: Output is reduced to 1200W maximum with 1-2 external battery packs and 800W maximum with 3 or more external battery packs
- Power Factor: 0.8
- Nominal Voltage Details: 120v nominal output in battery mode
- Frequency Compatibility: 60 Hz
- Output Voltage Regulation (Line Mode): -13% / +5%
- Output Voltage Regulation (Battery Mode): +/- 5%
- Load Management Receptacles: Two switchable single outlet 5-15R load banks
- Output AC Waveform (AC Mode): Sine wave
- Output AC Waveform (Battery Mode): PWM sine wave
- Nominal Output Voltage(s) Supported: 110V; 115V; 120V
- Output Receptacles: (6) 5-15R
- Individually Controllable Load Banks: Yes
- Runtime Full Load (min.): 11 min.
- Runtime Half Load (min.): 27 min.
- Expandable Runtime: Yes
- External Battery Pack Compatibility: BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
- DC System Voltage (VDC): 24
- Battery Recharge Rate (Included Batteries): Less than 9 hours from 10% to 90% (typical, full load discharge)
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140
- Overvoltage Correction: Input voltages between 127 and 140 are reduced by 12%
- Undervoltage Correction: Input voltages between 95 and 105 are boosted by 10%
- Severe Undervoltage Correction: Input voltages between 87 and 94 are boosted by 22%
- Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands
- Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- Audible Alarm: Audible alarm indicates power-failure and low-battery conditions
- LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- UPS AC Suppression Joule Rating: 720
- UPS AC Suppression Response Time: Instantaneous
- EMI / RFI AC Noise Suppression: Yes
- Primary Form Factor: Tower
- Primary UPS Depth (mm): 318
- Primary UPS Height (mm): 432
- Primary UPS Width (mm): 229
- Shipping Dimensions (hwd / in.): 13.75 x 16.50 x 22.50
- Shipping Weight (lbs.): 82.16
- UPS Housing Material: Polycarbonate
- UPS Power Module Dimensions (hwd, in.): 17 x 9 x 12.5
- UPS Power Module Weight (kg): 36.29
- UPS Power Module Weight (lbs.): 80
- Unit Weight (lbs.): 80.0000
- Operating Temperature Range: 32? to 104?F (0? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Relative Humidity: 0 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 59
- Battery Mode BTU / Hr. (Full Load): 867
- AC Mode Efficiency Rating (100% Load): 99%
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)
- PowerAlert Software: For local monitoring via the UPS's built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
- Communications Cable: 3 DB9 cables included
- Network Management Card Description: Network management not supported
- Communications Interface: Contact closure; DB9 Serial
- Transfer Time: 2-4 milliseconds
- Low Voltage Transfer to Battery Power (Setpoint): 87
- High Voltage Transfer to Battery Power (Setpoint): 140
- Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
- High Availability UPS Features: Surge/noise protection
- UPS Applications: Large Network
- Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance: RoHS; FCC Part 15 Class A (USA)
- Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
