SKU: NG7OZBW5UE |  Mfg. Part: STC PCIUSB3S4  | UPC: 065030849517  |  0 Reviews  |     Share

Startech STC PCIUSB3S4 .com 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power - PCI-X - Plug-in C

Pre Order
Expected availability: 1-2 weeks
Condition: New

$137.33  $185.40
Free Shipping for this Item

Product Overview

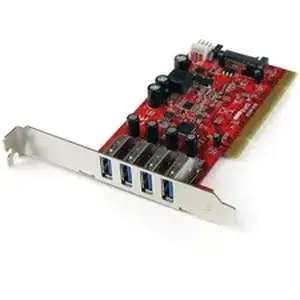

StarTech.com 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCIUSB3S4
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
Marketing Information:

The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product.
This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer


Packaged Quantity:1 Each
Product Type:USB Adapter

Technical Information
Host Interface:PCI-X
Media & Performance
Data Transfer Rate:5 GB/s
UASP Support:Yes
Interfaces/Ports
Total Number of USB Ports:4
Number of USB 3.2 Ports:4
Number of SATA Ports:1
Software
Operating System Supported:
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2003
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2016
  • Windows Server 2019

Physical Characteristics
Color Family:Red
Product Color:Red
Form Factor:Plug-in Card
Height:2.6"
Width:0.8"
Length:5.2"
Thickness:800 mil
Weight (Approximate):2.54 oz
Miscellaneous
Package Contents:
  • 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Additional Information:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003

  • Platform Supported:PC
    Country of Origin:Taiwan
    TAA Compliant:Yes
    Environmentally Friendly:Yes
    Environmental Compliance:
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)

    Warranty
    Limited Warranty:Lifetime

    Product Details

    • Manufacturer:
    • Model Number:
    • UPC:
    • Condition:
    • Weight:
    • Dimensions:
    • Updated:
    • Added:
    • Country of Origin:
    • STARTECH
    • STC PCIUSB3S4
    • 065030849517
    • New
    • 1 lbs
    • 5 X 5 X 5
    • Mar 28, 2026
    • Mar 28, 2026
    • Taiwan
    Product Identifiers: Brand: Startech • Part #: STC PCIUSB3S4 • UPC: 065030849517

    Startech STC PCIUSB3S4 .com 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power - PCI-X - Plug-in C
