General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SCL500RM1UNC
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS

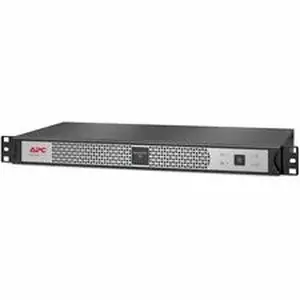

Product Name:Smart-UPS 500VA Rack-mountable UPS
Marketing Information:This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
AVR:Yes
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:4 x NEMA 5-15R
Number of Battery & Surge Outlets:4
Overload Protection:Yes
Cord Length:6 ft
Transfer Time:6 ms
Application/Usage:
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- IT Equipment
- Network Device
- Business
- Storage System
- Critical System
- Security System
- Communication System
Power Description
Load Capacity (VA):500 VA
Load Capacity (Watt):400 W
Input Voltage:120 V
Output Voltage:120 V AC
Input Frequency:63 Hz
Output Frequency:60 Hz
Waveform Type:Sine Wave
Surge Energy Rating:680 J
Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
Status Indicators:
LED Status Display:
Interfaces/Ports
Serial Port:Yes
USB (HID Compliant) Port:Yes
Battery Information
Battery Chemistry:Lithium Ion (Li-Ion)
Battery Energy:108 kJ
Backup/Run Time (Full Load):2.70 Minute
Backup/Run Time (Half Load):6.30 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes
Replaceable Battery:Yes
Environmental Conditions
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:6561 ft
Maximum Storage Elevation:49212 ft
Sound Emission (A-Weighted):45 dB(A)
Physical Characteristics
Color Family:Dual Color
Product Color:
Height:1.7"
Width:17"
Depth:9.1"
Rack Height:1U
Form Factor:Rack-mountable
Weight (Approximate):9.30 lb
Miscellaneous
For Country/Region:United States
Package Contents:Smart-UPS 500VA Rack-mountable UPS CD with softwareDocumentation CDInstallation guideRack mounting support railsUSB cable
Certifications & Standards:cULus|NOM
Software Included:Powerchute Serial Edition
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/filesrp_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UNC_ROHS_DECLARATION&p_FileName=SCL500RM1UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=511500678&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=511500678&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:5 Year
Additional Warranty Information:5 year repair or replace
Directly Connected Equipment Guarantee:
