Navico Group Americas Llc 5032-BSS Blue Sea 5032 12-Gang 2-Group Fuse Block ST ATO/ATC Negative Bus and Cover

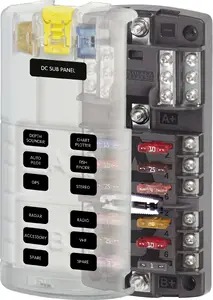

Blue Sea Systems ST Blade Split Bus Fuse Block 12 Circuits

• Provides two isolated groups of six ATO(R)/ATC(R) circuits
• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuses sold separately

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don't require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
