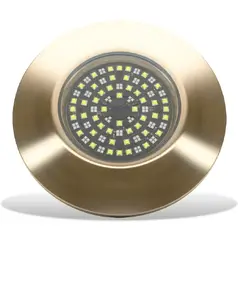

Lumishore SUPRA THX1604 Thru-Hull Mount and Driver Blue/White LED
Model: THX1604 / 010-04519-00Lumishore's THX1604 offers 20,000 fixture lumens and an ultra-wide 110 deg beam angle for the ultimate swimming pool effect. '2-lights-in-1 feet (blue and white) in a single full powered thru-hull fixture!
Switch between colors, fade colors, adjust brightness, and strobe in two speeds.
Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.
THX models feature a standard 1in fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.
Specifications| DUAL COLOR (BLUE & WHITE) | |
| LUMENS | 45,000 |
| VERIFIED FIXTURE LUMENS (WHITE) | 20,000 |
| NUMBER AND TYPE OF LED | White - 48 x 10W, Blue - 108 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | Multi-Channel External Driver |
| SUPPLY VOLTAGE | 24 V DC |
| MAX CURRENT DRAW | 6.5A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED | YES |
| BRIGHTNESS ADJUST | YES |
| STROBE | YES |
| SYNCHRONIZED STROBE | YES |
| FADE MODE | YES |
| SYNCHRONIZED FADE MODE | YES |
Garmin Usa, Inc 010-04519-00 Lumishore SUPRA THX1604 Thru-Hull Mount and Driver Blue/White LED
