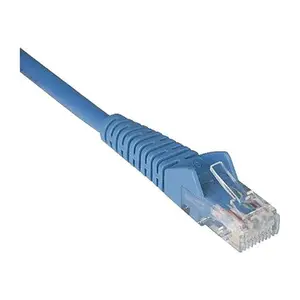

Tripplite N201-006-BL Tripp Lite, Patch Cable, Gigabit, Snagless Molded, Cat6, RJ45 M, 6FT, Blue

Premium cabling for Category 6, Category 5e and Category 5 applications--rated for 550 MHz/1 Gbps communications

• UPC Code: 037332172938
• Technology: Cat6; PoE
• Cable Jacket Color: Blue
• Cable Jacket Material: PVC
• Cable Jacket Rating: CM
• Cable Shielding: UTP
• Cable Outer Diameter (OD): 6.0 mm
• Number of Conductors: 4 Pair
• Conductor Material: Stranded Copper
• Conductor Gauge: 24 AWG
• Cable Length (ft.): 3
• Cable Length (in.): 72
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Shipping Weight (lbs.): 0.21
• Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
• Operating Temperature Range: 14? to 122?F (-10? to 50?C)
• Storage Temperature Range: 5? to 140?F (-15? to 60?C)
• Operating Humidity Range: 0% to 90% RH, Non-Condensing
• Storage Humidity Range: 0% to 90% RH, Non-Condensing
• Bandwidth per TIA Standard: 250 MHz
• Maximum Bandwidth as Tested: 500 MHz
• Network Compatibility: 1 Gbps (Gigabit)
• IEEE Standards Supported: 802.3an; 802.3at
• Side A - Connector 1: RJ45 (MALE)
• Side B - Connector 1: RJ45 (MALE)
• Contact Plating: Gold
• PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
• Connector Type: Snagless; Molded
• Wiring Configuration: EIA/TIA 568B
• Snagless Connector: Yes
• Product Certifications: UL Listed; cUL Listed
• Product Compliance: CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA
• Product Warranty Period (Worldwide): Lifetime limited warranty
