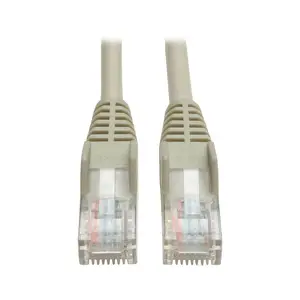

Tripplite N001-010-GY EATON, CAT5E, 350MHZ, GRAY SNAGLESS MOLDED PATCH CABLE, RJ45M/M - 10'

Tripp Lite's 10-ft. (3.05 m) gray snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard category 5e patch cables are also available.

• UPC Code: 037332042569
• Technology: Cat5/5e
• Power Over Cable (PoC) Support: No
• Cable Jacket Color: Gray
• Cable Jacket Material: PVC
• Cable Jacket Rating: CM
• Cable Shielding: UTP
• Cable Outer Diameter (OD): 5.0 mm
• Number of Conductors: 4 Pair
• Conductor Material: Stranded Copper
• Conductor Gauge: 26 AWG
• Cable Length (ft.): 10
• Cable Length (in.): 120
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Shipping Weight (lbs.): 0.24
• Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
• Operating Temperature Range: 14? to 104?F (-10? to 40?C)
• Storage Temperature Range: 5? to 122?F (-15? to 50?C)
• Operating Humidity Range: 0% to 90% RH, Non-Condensing
• Storage Humidity Range: 0% to 90% RH, Non-Condensing
• Bandwidth per TIA Standard: 100 MHz
• Maximum Bandwidth as Tested: 350 MHz
• Network Compatibility: 1 Gbps (Gigabit)
• IEEE Standards Supported: 802.3ab; 802.3at
• Side A - Connector 1: RJ45 (MALE)
• Side B - Connector 1: RJ45 (MALE)
• Contact Plating: Gold
• PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
• Connector Type: Molded; Snagless
• Wiring Configuration: EIA/TIA 568B
• Product Certifications: UL Listed; cUL Listed
• Product Compliance: CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA
• Product Warranty Period (Worldwide): Lifetime limited warranty
