General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DP2DVID2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

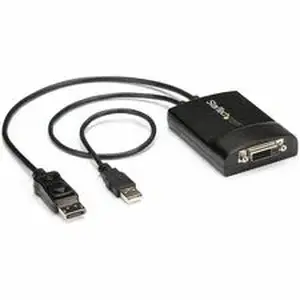

Product Name:DisplayPort to DVI Adapter
Marketing Information:The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Video Adapter
Technical Information
Connector Type on First End:
- DisplayPort Digital Audio/Video - Male
- USB Type A - Male
Connector Gender on First End:Male
Connector on First End Details:
- 1 x 20-pin DisplayPort Digital Audio/Video - Male
- 1 x 4-pin USB Type A - Male
Connector Type on Second End:DVI-D (Dual-Link) Digital Video - Female
Connector Gender on Second End:Female
Connector on Second End Details:1 x 19-pin DVI-D (Dual-Link) Digital Video - Female
Connector Plating:Nickel
Contact Plating:Gold
Features:
- Active
- HDCP
- Extended Display Identification Data (EDID)
- Screw Lock
Cable Length:1.22 ft
Physical Characteristics
Color Family:Black
Product Color:Black
Height:0.9"
Width:2.5"
Weight (Approximate):5.60 oz
Miscellaneous
Certifications & Standards:
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:3 Year
