General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT15KRMXLI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT

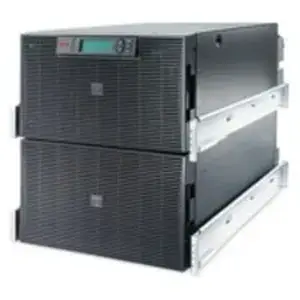

Product Name:Smart-UPS RT 15kVA Rack Mountable UPS
Marketing Information:
Smart-UPS RT 15kVA Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Smart-UPS RT 15kVA Rack Mountable UPS has the ability to be configured with matching battery packs to comply with aggressive runtime demands of business-critical systems.
Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
Receptacle Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
- IEC 320 EN 60320 C19
- IEC Jumper
Receptacle Detail:
- 1 x Hard Wire 3-wire
- 1 x Hard Wire 5-wire
- 8 x IEC 320 EN 60320 C19
- 2 x IEC Jumper
Number of Battery & Surge Outlets:21
Dataline Protection:RJ-45
Overload Protection:Yes
Power Description
Load Capacity (VA):15 kVA
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Sine Wave
Management
Network Management:SNMP Manageable
Bypass Switch:
- Static
- Internal
- External (Optional)
Emergency Power OFF:Yes
Interfaces/Ports
Serial Port:Yes
Network (RJ-45):Yes
Modular Slots:SmartSlot
Battery Information
Number of Batteries:4
Battery Characteristics:Maintenance-free/Sealed/Spill Proof
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:2.50 Hour
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Rack Height:12U
Height:21"
Width:17"
Depth:30.4"
Miscellaneous
Package Contents:
Smart-UPS RT 15kVA Rack Mountable UPS CD with softwareRack mounting support railsSmart UPS signalling RS-232 cableUser manualWeb/SNMP management cardAdditional Information:
- Multi-function LCD status and control console
- Audible and visible alarms : configurable delays
Output Voltage Note:
- Configurable for 220 : 230 or 240 nominal output voltage
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
