1 Available
Condition: New

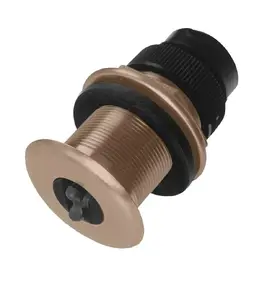

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.
Model: DST-810MSF| Urethane | |
| Hull Deadrise | Up to 22 deg |
| Data Update Rate | Depth 1X/second |
| Data Update Rate | Speed 5X/second |
| Attitude Accuracy | +/- 1 deg nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6 feet) |
| Maximum Depth Range | Up to 100 m (330 feet)-NMEA 2000(R) |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10 feet) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC-per NMEA 2000 |
| Supply Current | <200 mA-per NMEA 2000(R) |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20 feet) DeviceNet-NMEA 2000(R) |
| Temperature Sensor Accuracy | +/-0.5 degC (+/-1.8 degF) |
| Temperature Sensor Range | -10 degC to 40 degC (14 degF to 104 degF) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000
Airmar B617V Housing Style Transducer
The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2”) fitting. Only one hole through the hull simplifies the installation — an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-810MSF's reliable temperature sensor.
The DST-810MSF features a new Wireless connectivity to Airmar's CAST App, allowing you to calibrate the sensor, add depth offsets, and more.
Features:
Furuno Usa Inc. DST-810MSF Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull
