SKU: L1XS8V5Q78 |  Mfg. Part: STC SV565UTPHDU  | UPC: 065030853057  |  0 Reviews  |     Share Make an offer

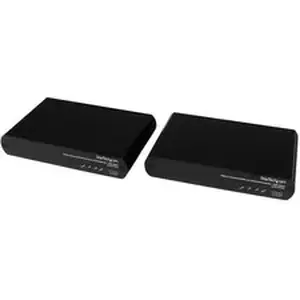

Startech STC SV565UTPHDU .com KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 330 ft Range - WUXGA - 1920 x 120

Pre Order
Expected availability: 1-2 weeks
Condition: New

$1,276.38  $1,723.11
Free Shipping for this Item

Product Overview

StarTech.com KVM Console/Extender

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SV565UTPHDU
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:KVM Console/Extender
Marketing Information:

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3Dsupport, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer


Packaged Quantity:1 Kit
Product Type:KVM Console/Extender

Technical Information
Connectivity Technology:Wired
Number of Computers Supported:1
Number of Local Users Supported:1
Maximum Operating Distance:330 ft
Video
Graphic Mode:WUXGA
Maximum Video Resolution:1920 x 1200
Interfaces/Ports
Network (RJ-45):Yes
USB:Yes
HDMI:Yes
Number of HDMI Ports:2
Number of Network (RJ-45) Ports:2
Number of USB Ports:6
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC

Input Voltage Range:100V AC to 240V AC
Power Consumption:15 W
Physical Characteristics
Color Family:Black
Product Color:Black
Transmitter Height:1.20"
Transmitter Width:4.40"
Transmitter Depth:6.90"
Receiver Height:1.20"
Receiver Width:4.40"
Receiver Depth:6.90"
Transmitter Weight (Approximate):1.87 lb
Receiver Weight (Approximate):1.87 lb
Miscellaneous
Package Contents:
  • 1 x Local Transmitter Unit
  • 1 x Remote Receiver Unit
  • 4 x Mounting Brackets
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 2 x Universal Power Adapters (NA, EU ,UK)
  • 1 x Quick-start guide

Certifications & Standards:
  • CE
  • FCC
  • UL

Environmentally Friendly:Yes
Country of Origin:Canada
Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • STARTECH
  • STC SV565UTPHDU
  • 065030853057
  • New
  • 1 lbs
  • 5 X 5 X 5
  • Mar 28, 2026
  • Mar 28, 2026
  • Canada
Product Identifiers: Brand: Startech • Part #: STC SV565UTPHDU • UPC: 065030853057

Startech STC SV565UTPHDU .com KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 330 ft Range - WUXGA - 1920 x 120
