Startech STC HSB4SATSASBA .com Drive Enclosure for 5.25" SATA/600, Serial Attached SCSI (SAS) - 6Gb/s SAS, Serial ATA/60

Pre Order
Expected availability: 1-2 weeks
Condition: New

$224.53  $303.12
Free Shipping for this Item

Product Overview

StarTech.com Drive Enclosure for 5.25" SATA/600, Serial Attached SCSI (SAS) - 6Gb/s SAS, Serial ATA/600 Host Interface Internal - Black

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:HSB4SATSASBA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

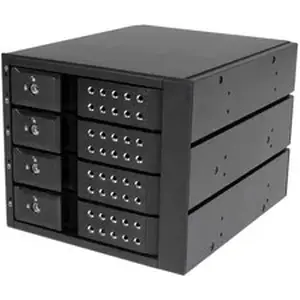

Product Name:4 Drive Trayless 3.5in SATA/SAS Mobile Rack
Marketing Information:

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer


Packaged Quantity:1 Each
Product Type:Drive Enclosure

Technical Information
Number of Hard Drives Supported:4
Number of Hard Drives Installed:No
I/O Expansions
Number of Total Expansion Bays:4
Number of 3.5" Bays:4
Network & Communication
Wireless LAN:No
Interfaces/Ports
Drive Interface:
  • SATA/600
  • Serial Attached SCSI (SAS)

Host Interface:
  • 6Gb/s SAS
  • Serial ATA/600

Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:Aluminum
Cooling Fan:Yes
Form Factor:Internal
Compatible Drive Bay Width:5.25"
Height:5"
Width:5.7"
Depth:7.8"
Weight (Approximate):2.80 lb
Miscellaneous
Package Contents:
  • 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
  • 8 x Installation Screws
  • 2 x Drive bay Keys
  • 4 x SATA Cables
  • 1 x Instruction Manual

Certifications & Standards:
  • FCC
  • CE

Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • STARTECH
  • STC HSB4SATSASBA
  • 065030859547
  • New
  • 1 lbs
  • 5 X 5 X 5
  • Mar 28, 2026
  • Mar 28, 2026
  • China
Product Identifiers: Brand: Startech • Part #: STC HSB4SATSASBA • UPC: 065030859547

Startech STC HSB4SATSASBA .com Drive Enclosure for 5.25" SATA/600, Serial Attached SCSI (SAS) - 6Gb/s SAS, Serial ATA/60
