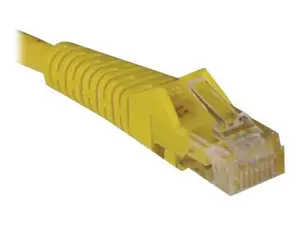

Premium cabling for Category 5 and 5e applications--rated for 350 MHz/1 Gbps communications
- UPC Code: 037332172754
- Technology: Cat5/5e
- Power Over Cable (PoC) Support: No
- Cable Jacket Color: Yellow
- Cable Jacket Material: PVC
- Cable Jacket Rating: CM
- Cable Shielding: UTP
- Cable Outer Diameter (OD): 5.0 mm
- Number of Conductors: 4 Pair
- Conductor Material: Stranded Copper
- Conductor Gauge: 26 AWG
- Cable Length (ft.): 50
- Cable Length (in.): 600
- Shipping Dimensions (hwd / in.): 10.00 x 0.50 x 8.00
- Shipping Weight (lbs.): 1.23
- Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
- Operating Temperature Range: 14? to 104?F (-10? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Operating Humidity Range: 0% to 90% RH, Non-Condensing
- Storage Humidity Range: 0% to 90% RH, Non-Condensing
- Bandwidth per TIA Standard: 100 MHz
- Maximum Bandwidth as Tested: 350 MHz
- Network Compatibility: 1 Gbps (Gigabit)
- IEEE Standards Supported: 802.3ab; 802.3at
- Side A - Connector 1: RJ45 (MALE)
- Side B - Connector 1: RJ45 (MALE)
- Contact Plating: Gold
- PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
- Connector Type: Molded; Snagless
- Wiring Configuration: EIA/TIA 568B
- Product Certifications: UL Listed; cUL Listed
- Product Compliance: CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA
- Product Warranty Period (Worldwide): Lifetime limited warranty
