General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8867
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Metered Rack

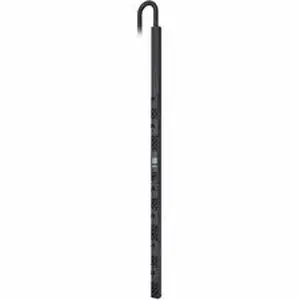

Product Name:Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Marketing Information:The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Packaged Quantity:1 Each
Product Type:PDU
Technical Information
PDU Type:Metered
Plug/Connector Type:IEC 60309 60A 3P+PE
Receptacle Type:IEC 60320 C13
Receptacle Detail:30 x IEC 60320 C13
Protection Type:Overload Protection
Power Description
Input Voltage:208 V
Output Voltage:208 V AC
Power Rating (VA):17.20 kVA
Management
Management:
Protocols:
Physical Characteristics
Color Family:Black
Product Color:Black
Mount Type:Rack-mountable
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:6 ft
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):22.49 lb
Miscellaneous
For Country/Region:United States
Package Contents:
Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 Installation guideRack mounting bracketsSafety guideSerial configuration cableAdditional Information:
Input Connections: IEC 309 60A 3P+PE
Certifications & Standards:cUL Listed|UL Listed|VCCI Class A
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/filesrp_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8867_ROHS_DECLARATION&p_FileName=AP8867KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=323194462&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=323194462&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
