General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SCL500RM1UC
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS

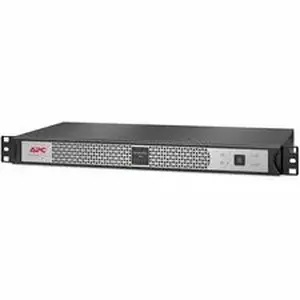

Product Name:Smart-UPS 500VA Rack/Floor Mountable UPS
Marketing Information:This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
AVR:Yes
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:4 x NEMA 5-15R
Number of Battery & Surge Outlets:4
Dataline Protection:RJ-45
Cord Length:6 ft
Transfer Time:10 ms
Application/Usage:
- Network
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- Equipment
- Business
- Storage
- Security System
- Communication System
- Voice/Data Network
Power Description
Load Capacity (VA):500 VA
Load Capacity (Watt):400 W
Input Voltage:120 V
Input Voltage Range:92 V AC - 139 V AC
Output Voltage:120 V AC
Input Frequency:63 Hz
Output Frequency:60 Hz
Waveform Type:Sine Wave
Surge Energy Rating:680 J
Management
Network Management:SmartConnect
Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
Status Indicators:LED Display
Interfaces/Ports
Serial Port:Yes
Network (RJ-45):Yes
EPO Port:Yes
USB (HID Compliant) Port:Yes
Battery Information
Battery Characteristics:Valve-regulated
Battery Chemistry:Lithium Ion (Li-Ion)
Backup/Run Time (Full Load):2.70 Minute
Backup/Run Time (Half Load):6.30 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes
Replaceable Battery:Yes
Environmental Conditions
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:6561 ft
Maximum Storage Elevation:49212 ft
Operating Humidity:10% - 90%
Storage Relative Humidity:10% - 90%
Sound Emission (A-Weighted):45 dB(A)
Physical Characteristics
Color Family:Dual Color
Product Color:
Height:1.7"
Width:17"
Depth:9.1"
Rack Height:1U
Form Factor:Rack-mountable
Weight (Approximate):9.22 lb
Miscellaneous
For Country/Region:United States
Package Contents:Smart-UPS 500VA Rack/Floor Mountable UPS CD with softwareDocumentation CDInstallation guideRack mounting support railsUSB cable
Certifications & Standards:cULus|NOM
Software Included:Powerchute Serial Edition
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/filesrp_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UC_ROHS_DECLARATION&p_FileName=SCL500RM1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=511500677&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=511500677&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:5 Year
Additional Warranty Information:5 year repair or replace
Directly Connected Equipment Guarantee:
