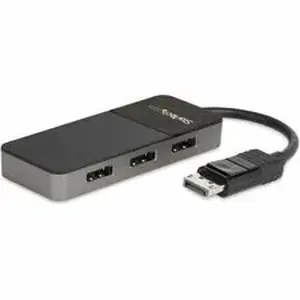

Startech STC MST14DP123DP .com 3-Port DisplayPort MST Hub - DP 1.4 - 60 Hz - 30 Hz to 60 Hz - 7680 x 4320 - 78.74" Maxim

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MST14DP123DP
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:3-Port DisplayPort MST Hub - DP 1.4
Marketing Information:

This3-port DisplayPort MST hublets youcreate ahigh-performanceworkstation byconnectingthreeDisplayPort monitorsto yourDisplayPortdevice,helpingtoincrease and maximize your productivity.Themulti-monitor splittersupports High Dynamic Range (HDR) and provides sharper images with enhanced video.

Incredible Picture Quality

Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680r-4320 at 30Hz on a single monitor and supportsmulti-monitorapplications at lower resolutions and refresh rates, enabling a dynamic work environmentwhether you're in the office, at home or traveling.

Display 1 Display 2 Display 3 8K (7680x4320) @ 30Hz X X 5K (5120x2880) @ 60Hz 1080p (1920x1080) @ 30Hz X 4K (3840x2160) @ 60Hz 4K (3840x2160) @ 30Hz 4K (3840x2160) @ 30Hz 2K (2560x1600) @ 60Hz 2K (2560x1600) @ 60Hz 2K (2560x1600) @ 60Hz 1080p (1920x1080) @ 60Hz 1080p (1920x1080) @ 60Hz 1080p (1920x1080) @ 60Hz

Both your source and destination mustsupportDisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz). Lower resolutions and refresh rates may also be supported.

Multi-Tasking Made Easy

ThisDisplayPort to 3x DisplayPort MST hubenables you to connect three displays to yourDPcomputer, making multi-tasking much easier. Using thismulti-monitor video splitter, you can mirror your display onto multiple monitors,stream independent content to each displayor extendyour screen to create a video wall effect.

Hassle-Free Setup

Multi-stream transportoffers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, theDisplayPort MST hubis bus-powered(with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.

MST14DP123DPis backed by a StarTech.com 3-year warranty, and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Signal Splitter

Technical Information

---

Minimum Frequency:30 Hz
Maximum Frequency:60 Hz

Video

---

Maximum Video Resolution:7680 x 4320

Interfaces/Ports

---

DisplayPort:Yes
USB:Yes
Number of DisplayPort Inputs:1
Number of DisplayPort Outputs:3

Media & Performance

---

Maximum Operating Distance:78.74"

Physical Characteristics

---

Color Family:Black
Product Color:Black
Product Material:Plastic
Height:0.6"
Width:4.1"
Length:1.7"
Weight (Approximate):1.94 oz

Miscellaneous

---

Package Contents:

• 3-Port DisplayPort MST Hub - DP 1.4
• 1 x Micro-USB Power Cable

Country of Origin:China
Environmentally Friendly:Yes

Warranty

---

Limited Warranty:3 Year
