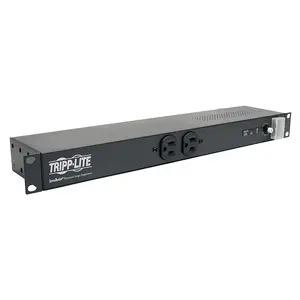

Rack-mount protection for A/V components, network hardware, retail displays, appliances, power tools and other expensive electronics against dangerous surges, spikes and line noise in IT and industrial environments.
- UPC Code: 037332099235
- Nominal Input Voltage(s) Supported: 120V AC
- Recommended Electrical Service: 120V (110-125V)
- Input Cord Gauge (AWG): 14
- Voltage Compatibility (VAC): 120
- Maximum Surge Amps: 150000
- Input Plug Type: NEMA 5-20P
- Input Cord Details: SJT
- Input Cord Length (ft.): 15
- Right-Angle Plug: No
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (2) 5-15R; (10) 5-20R
- Circuit Breaker (amps): 20
- Diagnostic LED(s): Yes
- Switches: Red illuminated power switch controls power to all outlets
- Diagnostic LED Details: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
- Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff
- AC Suppression Joule Rating: 3840
- AC Suppression Response Time: NM = 0 ns. CM = <1 ns
- Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- AC Suppression Surge Current Rating: 96,000 amps
- AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
- Safe Thermal Fusing: Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
- UL1449 Let Through Rating: 330V
- EMI / RFI Filtering: 40-80 dB
- Isolated Filter Banks: Yes
- Immunity: Conforms to IEE 587 / ANSI C62.41
- Network (Ethernet) Protection: No
- Material of Construction: Metal
- Power Cord Color: Black
- Form Factors Supported: 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
- Housing Color: Black
- Included Mounting Accessories: Included mounting flanges are pre-installated for 1U rackmount installation and can be re-configured to support a variety of mounting options
- Mounting Holes or Slots: No
- Outlets Measurement (Center to Center): Distance between front outlets = 38.9mm; Distance between rear outlets = 40.65mm
- Receptacle Color: Black
- Shipping Dimensions (hwd / in.): 9.20 x 2.60 x 20.30
- Shipping Weight (lbs.): 6.60
- Unit Dimensions (hwd / in.): 1.750 x 17.500 x 4.000
- Unit Weight (lbs.): 6.3
- Mounting Details: Includes flanges
- Product Warranty Period (Worldwide): Lifetime limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $25,000 Ultimate Lifetime Insurance
