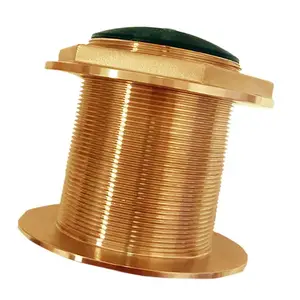

Echonautics BT87H1KW 130-210kHz 1kW High CHIRP 18 deg Tilted Element
Model: BT87H1KW-18The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds.
Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures.
Specifications| Depth and Temperature | |
| Frequency | CHIRP 130 - 210 kHz |
| Tilt/deadrise | 18 deg tilted version: for 16 deg to 24 deg hull deadrise |
| Material | Bronze |
| RMS Power | 1 kW |
| Beamwidth | 13 deg to 8 deg @-3db |
| Depth | Max 304 m (1,000 ft) |
| Temp. sensor | NTC |
| Acoustic window | Urethane |
| Cable length | 9 m (30 ft) |
| Hole diameter | 87.6 mm (3.45 in) |
