General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST122UTPA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

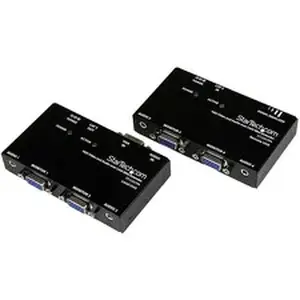

Product Name:VGA Video Extender over Cat 5 with Audio
Marketing Information:
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Kit
Product Type:Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:4
Maximum Operating Distance:150 ft
Video
Graphics Modes:XGA
Maximum Video Resolution:1440 x 900
Interfaces/Ports
Network (RJ-45):Yes
VGA In:Yes
VGA Out:Yes
Number of Network (RJ-45) Ports:2
Number of VGA Inputs:2
Number of VGA Outputs:2
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5
Physical Characteristics
Color Family:Black
Product Color:Black
Transmitter Height:0.80"
Transmitter Width:3.30"
Transmitter Depth:2.40"
Form Factor:Desktop
Transmitter Weight (Approximate):6.40 oz
Miscellaneous
Package Contents:
- 1 x Local VGA Extender Unit
- 1 x Remote VGA Extender Unit
- 1 x Mounting Bracket for Receiver (w/ screws)
- 2 x Sets Rubber Feet
- 2 x Power Adapter
- 1 x Instruction Manual
Additional Information:
- Allows users to make use of existing Ethernet infrastructure to extend VGA displays and audio
- Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
- Includes mounting brackets for versatile mounting options such as a wall, desk or cabinet, for a clean and manageable solution
Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
