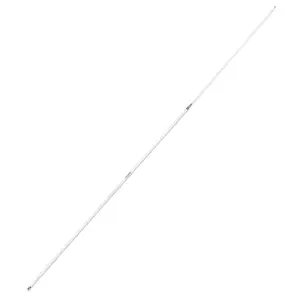

Shakespeare Company Llc 5309-R Shakespeare 5309R 23ft VHF Galaxy Antenna Ships Via Truck

Galaxy Style 5309-R
23 ft. (7.01 M) VHF Marine Band 9dB

Phased << wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation

This design invokes all the antenna engineers' tricks to produce the clearest possible transmission and reception over the longest range.


Brass and copper elements
Stainless steel ferrules, standard 1in-14 thread mounting ferrule
Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
Suggested mount: Shakespeare Style 409-R (sold separately) or 410-R Mounting Kit (pictured mount sold separately)
2 Sections: Base 172 in, Tip 105 in
Twin to: Shakespeare Style 5310-R
Suggested mount(s): 409-R 410-R

Galaxy 5309-R Specifications
Band: VHF Marine Band
Antenna Gain: 9dB
Max. Input Power: 150 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Stainless steel
Coax Supplied: 20 ft of RG-8/X
Connector Supplied: PL-259, not attached
Color/finish: Galaxy White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read open on continuity test.
Shakespeare
Limited Warranty: 5 years
