General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SC450RMI1U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:SC

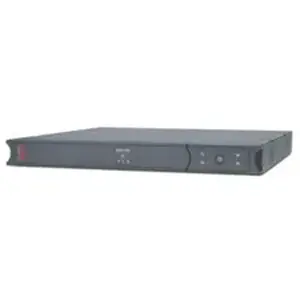

Product Name:Smart-UPS SC 450VA Rackmount/Tower
Marketing Information:
Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.
Packaged Quantity:1 Each
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:IEC 320-C14
Receptacle Type:IEC 60320 C13
Receptacle Detail:
Number of Battery & Surge Outlets:6
Dataline Protection:
Emergency Power OFF:Optional
Power Description
Load Capacity (VA):450 VA
Load Capacity (Watt):280 W
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Stepped Sine Wave
Surge Energy Rating:320 J
Management
Alarm:
Battery Management:Intelligent battery management
Controls/Indicators
Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port:Yes
Battery Information
Battery Characteristics:Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):5.90 Minute
Backup/Run Time (Half Load):19.40 Minute
Hot Swappable:Yes
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):38 dB(A)
Thermal Dissipation:11.14 W
Physical Characteristics
Color Family:Gray
Product Color:Gray
Height:1.7"
Width:17"
Depth:15.1"
Rack Height:1U
Form Factor:Rack-mountable
Weight (Approximate):22.40 lb
Miscellaneous
Package Contents:
Smart-UPS SC 450VA Rackmount/Tower CD with softwareRack mounting bracketsSmart UPS signalling RS-232 cableUser manualAdditional Information:
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: up to 5 : 1
- Replacement battery cartridge quantity: 1
- Units per Pallet: 24.00
- Front-access servicing
- Multiple mounting methods
- Boost and Trim Automatic Voltage Regulation (AVR)
- Power conditioning
- Cold-start capable
Certifications & Standards:
- UL 1449
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- PCBC
- VDE
Country of Origin:Philippines
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
