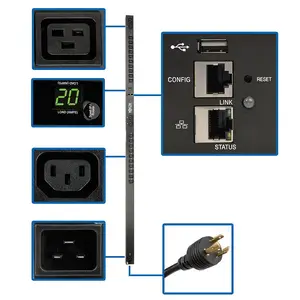

Tripplite PDUMNV20HVLX EATON, 3.7KW/16A SINGLE-PHASE MONITORED PDU, 208/230V, OUTLETS 20-C13/4-C19, C20/L6-20P ADAPTER,

The PDUMNV20HVLX 3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug is included.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

• UPC Code: 037332205339
• PDU Type: Monitored
• Input Phase: Single-Phase
• PDU Input Voltage: 208; 230
• Recommended Electrical Service: Single-phase 16/20A 230/208V service
• Maximum Input Amps: 16
• Maximum Input Amps Details: Agency de-rated to 16A continuous
• Input Connection Type: C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported.
• PDU Plug Type: NEMA L6-20P; IEC-320 C20
• Input Cord Length (ft.): 10
• Output Capacity Details: 3.7kW (230V), 3.3kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (20) C13; (4) C19
• Output Nominal Voltage: 208/230V
• Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
• Switches: Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees
• Material of Construction: Metal
• Form Factors Supported: 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
• PDU Form Factor: Vertical (0U)
• Shipping Dimensions (hwd / in.): 4.00 x 6.00 x 72.50
• Shipping Weight (lbs.): 13.50
• Unit Dimensions (hwd / in.): 70.000 x 2.190 x 2.650
• Unit Weight (lbs.): 8.5
• Operating Temperature Range: 32? to 104?F (0? to 40?C)
• Storage Temperature Range: -22? to 140?F (-30? to 60?C)
• Relative Humidity: 5% to 95% non-condensing
• Operating Elevation (ft.): 0-10,000
• Operating Elevation (m): 0-3000
• PowerAlert Software: LX Platform Interface: PowerAlert Device Manager
• Communications Cable: RJ45-to-DB9 configuration/console Access cable
• SNMP Compatibility: Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
• Network Compatibility: 10 Mbps; 100 Mbps (Fast Ethernet)
• High Availability PDU Features: Remote Network Notifications
• Product Certifications: CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
• Product Compliance: RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
• Product Warranty Period (Worldwide): 2-year limited warranty
