General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9559
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:NetShelter

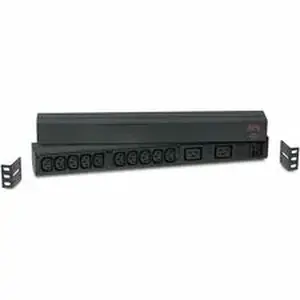

Product Name:NetShelter 12-Outlets PDU
Marketing Information:Reliable rack power distribution
Packaged Quantity:1 Each
Product Type:PDU
Technical Information
PDU Type:Basic
Plug/Connector Type:IEC 60320 C20
Plug/Connector Detail:1 x IEC 60320 C20
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 10 x IEC 60320 C13
- 2 x IEC 60320 C19
Load Capacity (VA):3680 W
Power Description
Input Voltage:
Input Voltage Range:90 V AC - 250 V AC
Output Voltage:
Input Current:16 A
Input Frequency:60 Hz
Physical Characteristics
Color Family:Black
Product Color:Black
Mounting Orientation:Horizontal
Mount Type:Rack-mountable
Rack Height:1U
Cord Length:8.20 ft
Height:1.7"
Width:17.6"
Depth:2.2"
Weight (Approximate):2.16 lb
Environmental Conditions
Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:113°F (45°C)
Minimum Operating Humidity:0%
Maximum Operating Humidity:95%
Minimum Storage Temperature:-13°F (-25°C)
Maximum Storage Temperature:149°F (65°C)
Miscellaneous
For Country/Region:United States
Package Contents:
- NetShelter 12-Outlets PDU
- User Manual
- Rack Mounting Brackets
Additional Information:
- Maximum Line Current per phase: 16 A
- Always on Outlets: 12
Certifications & Standards:
- cUL Listed
- CE
- UL Listed
- VDE
- Victoria
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=759556&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=759556&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
Additional Warranty Information:2 years repair or replace
