General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST1000SMPEX
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

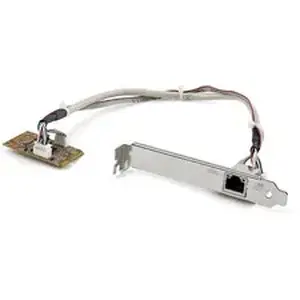

Product Name:Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Marketing Information:The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Gigabit Ethernet Card
Technical Information
Chipset Manufacturer:Realtek
Chipset Model:RTL8111E
Interfaces/Ports
Host Interface:Mini PCI Express
Total Number of Ports:1
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Media & Performance
Media Type Supported:Twisted Pair
Network & Communication
Network Technology:10/100/1000Base-T
Physical Characteristics
Card Height:Low-profile
Form Factor:Plug-in Card
Height:1.3"
Width:5.7"
Depth:2"
Thickness:160 mil
Weight (Approximate):0.20 oz
Miscellaneous
Package Contents:
- Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
- 1 x RJ45 Daughter Board
- 1 x Low Profile Bracket
- 1 x Driver CD
- Internal LED Cable
- Internal Data Cable
- 1 x Instruction Manual
Additional Information:
- Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
- Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
System Requirements:
- Windows® 2000, XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS® 10.4.x and 10.5.x
- Linux 2.4.x to 4.11.x LTS Versions Only
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:Taiwan
