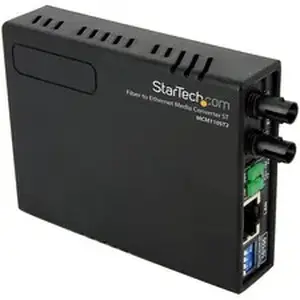

Startech STC MCM110ST2 .com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - 1 x Network (RJ-45) -

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MCM110ST2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Marketing Information:The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports:2
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Number of ST Ports:1
ST Port Type:Duplex

Media & Performance

---

Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:Multi-mode
Fiber Optic Cable Wavelength:0.1 mil
Maximum Distance Supported:2 km

Network & Communication

---

Ethernet Technology:Fast Ethernet
Network Technology:

• 10Base-T
• 100Base-FX

Power Description

---

Power Source:AC Adapter
Power Consumption:2.40 W
Plug/Connector Type:Type M

Physical Characteristics

---

Form Factor:External
Height:0.8"
Width:3"
Depth:3.7"
Weight (Approximate):2.90 oz

Miscellaneous

---

Package Contents:

• 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
• 1 x Power Adapter
• 1 x Instruction Manual

Additional Information:

• Plug Type: M
• Fiber Operating Mode: Half/Full-Duplex

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

---

Limited Warranty:2 Year
