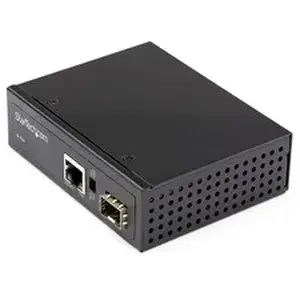

Startech STC IMC1GSFP60W .com Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - Multi-mode, Single-

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:IMC1GSFP60W
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Transceiver/Media Converter
Marketing Information:This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.

Designed for Harsh Environments

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F

Up to 60 Watts of Power for Connected Devices

60 watts of available support a wide range of PD devices such as:

• Pan-and-Tilt Cameras
• Lighting
• Cameras
• Sensors
• WiFi Access Points

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports:1
Network (RJ-45):Yes
Number of PoE (RJ-45) Ports:1

Media & Performance

---

Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:

• Multi-mode
• Single-mode

I/O Expansions

---

Total Number of Expansion Slots:1
Expansion Slot Type:SFP (mini-GBIC)
Number of SFP Slots:1

Network & Communication

---

Ethernet Technology:Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-TX
• 100Base-TX
• 100Base-T

Power Description

---

Power Source:PoE+
Power Consumption:60 W
Plug/Connector Type:

• Terminal Block (3 Wire)
• Type N

Physical Characteristics

---

Form Factor:

• DIN Rail Mountable
• Wall Mountable

Height:1.3"
Width:3.2"
Depth:4.1"
Weight (Approximate):5.40 oz

Miscellaneous

---

Package Contents:

• Transceiver/Media Converter
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block to Barrel Power Connector Adapter
• Terminal Block

Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin:Taiwan

Warranty

---

Limited Warranty:2 Year
