General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MASFP10GBSR
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

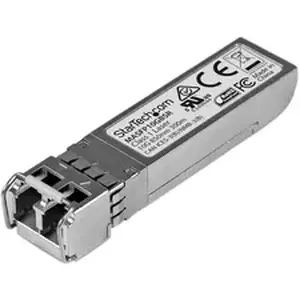

Product Name:Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ Transceiver Module - 10GBASE-SR
Marketing Information:The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications: - Wavelength: 850nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:SFP+
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 10GBase-SR Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-SR
Physical Characteristics
Form Factor:
- Hot-pluggable
- Hot-swappable
Height:0.5"
Width:0.5"
Depth:2.1"
Weight (Approximate):0.04 lb
Miscellaneous
Compatibility:
Cisco Meraki Switches - MS225
- MX400
- MS250
- MS350
- MS425
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:Lifetime
