SKU: HS1YLS9RIF |  Mfg. Part: STC HSB100SATBK  | UPC: 065030821360  |  0 Reviews  |     Share

Startech STC HSB100SATBK .com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black - Hot-swap any

Pre Order
Expected availability: 1-2 weeks
Condition: New

$56.67  $76.50
Free Shipping for this Item

Product Overview

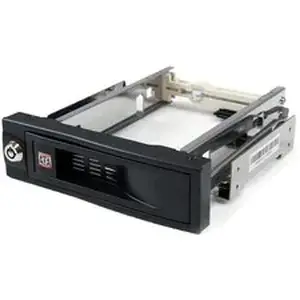

StarTech.com 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:HSB100SATBK
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:HSB100SATBK
Product Name:5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
Marketing Information:

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.


Packaged Quantity:1
Product Type:Drive Bay Adapter

Technical Information
Number of Hard Drives Supported:1
Controllers
Controller Type:Serial ATA/600
I/O Expansions
Number of Total Expansion Bays:1
Number of 3.5" Bays:1
Interfaces/Ports
Drive Interface:SATA/600
Host Interface:Serial ATA/600
Physical Characteristics
Product Color:Black
Product Material:Aluminum
Form Factor:Internal
Compatible Drive Bay Width:5.25"
Height:1.7"
Width:5.9"
Depth:7.2"
Weight (Approximate):9.21 oz
Miscellaneous
Package Contents:
  • 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
  • 2 x Keys
  • 1 x Screw Kit
  • 1 x Instruction Manual

Additional Information:
  • Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
  • Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Compatibility:

PC


Certifications & Standards:
  • RoHS
  • CE
  • FCC

Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • STARTECH
  • STC HSB100SATBK
  • B000KS8S9W
  • 065030821360
  • New
  • 1 lbs
  • 5 X 5 X 5
  • Apr 09, 2026
  • Mar 28, 2026
  • China
Product Identifiers: Brand: Startech • Part #: STC HSB100SATBK • UPC: 065030821360 • ASIN: B000KS8S9W
