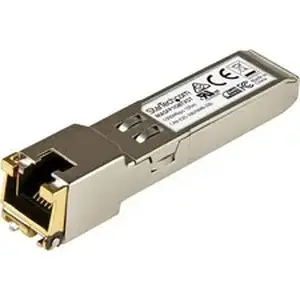

Startech STC MASFP1GBTXST .com Cisco Meraki SFP (mini-GBIC) Module - For Data Networking, Optical Network - 1 x RJ-45 10

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MASFP1GBTXST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Cisco Meraki SFP (mini-GBIC) Module
Marketing Information:The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:SFP (mini-GBIC)

Technical Information

---

Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:RJ-45
Interfaces/Ports Details:1 x RJ-45 10/100/1000Base-T Network LAN

Media & Performance

---

Media Type Supported:Twisted Pair
Ethernet Technology:Gigabit Ethernet
Network Technology:10/100/1000Base-T

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.5"
Width:0.7"
Depth:2.7"
Weight (Approximate):0.04 lb

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Meraki Switches:

• MS225
• MX400
• MS250
• MS350
• MX84

Country of Origin:Taiwan
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

---

Limited Warranty:Lifetime
