General Information
Manufacturer:StarTech.com
Manufacturer Part Number:BNDTB1394B3
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

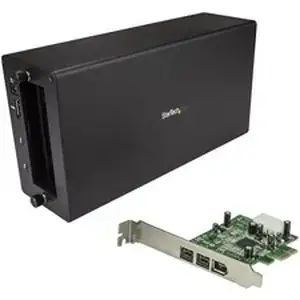

Product Name:Thunderbolt 3 to FireWire Adapter - Card & Chassis
Marketing Information:The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com's Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire® devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. The TB31PCIEX16 is backed by StarTech.com's 2-year warranty. The PEX1394B3 is backed by StarTech.com's lifetime warranty.
Packaged Quantity:1
Product Type:Expansion Chassis
Technical Information
Connectivity Technology:Wired
Interfaces/Ports
Host Interface:Thunderbolt 3
DisplayPorts Quantity:1
Power Description
Power Plug Type:Type N
Power Source Type:Power Adapter
Physical Characteristics
Color Family:Black
Product Color:Black
Product Material:
Height:3.2"
Width:5.6"
Length:11"
Weight (Approximate):3.75 lb
Miscellaneous
Package Contents:
- Thunderbolt 3 to FireWire Adapter - Card & Chassis
- AC Adapter
Additional Information:
- Connector Type(s): 1 - PCI Express x1
- Internal Ports: 1 - PCI Express x16; 1 - LP4 (4 pin; Large Drive Power)
- External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a); 2 - FireWire 800 (9 pin, IEEE 1394b); 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Ports: 6
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; FireWire 800 (1394b); FireWire 400 (1394a)
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3; IEEE-1394/1394A/1394B; OHCI;PCI Express 1.1
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis) Texas Instruments - XIO2213B (Firewire card)
Application/Usage:
Certification:
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:2 Year
