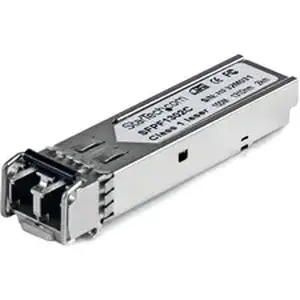

Startech STC SFPF1302C .com 155 Mbps 1310nm Multi Mode LC SFP Fiber Optic Transceiver w/ DDM - 2km - For Data Networking

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:SFPF1302C
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:155 Mbps 1310nm Multi Mode LC SFP Fiber Optic Transceiver w/ DDM - 2km
Marketing Information:The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 1,472,572 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:SFP (mini-GBIC)

Technical Information

---

Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 100Base-FX Network

Media & Performance

---

Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:Fast Ethernet
Network Technology:100Base-FX
Maximum Data Transfer Rate:155 Mbit/s

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.6"
Width:0.4"
Depth:2.6"
Weight (Approximate):0.06 lb

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Switches:

• ASR920
• IE2000
• IE4000
• IR1101

Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty:Lifetime
