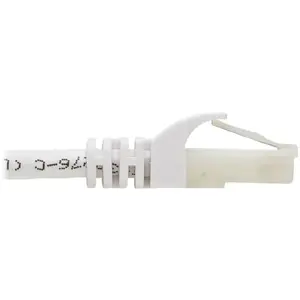

Tripplite N261AB-003-WH Tripp Lite, Series Safe-IT, Cat6a, 10G, Snagless Antibacterial, UTP Ethernet Cable (RJ45 M), PoE

The Cat6a Ethernet cable with RJ45 connectors is designed for high-speed 10 Gbps data, voice, and video transmission, making it ideal for use in 10G Ethernet networks, including data centers, servers, routers, and switches. Its antibacterial material helps inhibit the growth of harmful bacteria like E. coli and Staphylococcus aureus, making it suitable for environments such as medical facilities, schools, and kitchens. The snagless RJ45 connectors feature strain relief to protect the cable during installation, while the 24 AWG copper wire and gold-plated connectors ensure optimal signal quality and near-end crosstalk performance. Additionally, the white PVC jacket enhances visibility and helps prevent accidental disconnections in dense setups, reducing potential downtime.

• UPC Code: 037332259776
• Technology: Cat6a
• PoE Capability: 30W (802.3at)
• Side A - Connector 1: RJ45 (MALE)
• Side B - Connector 1: RJ45 (MALE)
• Contact Plating: Gold
• PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
• Connector Type: Molded; Snagless
• Wiring Configuration: EIA/TIA 568B
• Cable Jacket Color: White
• Cable Jacket Material: PVC
• Cable Jacket Rating: CMX
• Cable Shielding: UTP
• Cable Outer Diameter (OD): 6.2 mm
• Number of Conductors: 4 Pair
• Conductor Material: Stranded Copper
• Conductor Gauge: 24 AWG
• Cable Length (ft.): 3
• Cable Length (in.): 36
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Operating Temperature Range: 14? to 122?F (-10? to 50?C)
• Storage Temperature Range: 5? to 140?F (-15? to 60?C)
• Operating Humidity Range: 0% to 90% RH, Non-Condensing
• Storage Humidity Range: 0% to 90% RH, Non-Condensing
• Bandwidth per TIA Standard: 500 MHz
• Maximum Bandwidth as Tested: 600 MHz
• Network Compatibility: 10 Gbps
• IEEE Standards Supported: 802.3an; 802.3at
• Antibacterial: Yes
• Snagless Connector: Yes
• Product Certifications: UL Listed; cUL Listed
• Product Compliance: CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA; Trade Agreements Act (TAA)
• Product Warranty Period (Worldwide): Lifetime limited warranty
