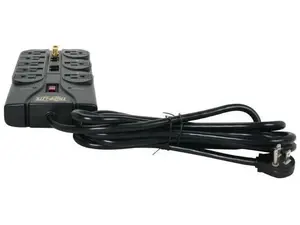

The TLP810NET surge suppressor has eight outlets, a 10-foot (3.1-meter) cord with a space-saving right-angle plug, and diagnostic LEDs. The unit has a surge suppression rating of 3240 joules to handle the strongest surges. Built-in RJ11, RJ45, and Type F coax jacks prevent surges from damaging your modem/fax/100Bt/cable/satellite equipment. Coaxial jacks provide digital broadband quality and can handle 2.2 GHz bandwidth.
- UPC Code: 037332095329
- Nominal Input Voltage(s) Supported: 120V AC
- Recommended Electrical Service: 120V (110-125V)
- Input Plug Features: Right Angle (36D)
- Input Cord Gauge Type: 14 gauge; SJT
- Input Cord Gauge (AWG): 14
- Voltage Compatibility (VAC): 120
- Maximum Surge Amps: 216000
- Input Plug Type: NEMA 5-15P
- Input Cord Details: SJT
- Input Cord Length (ft.): 10
- Right-Angle Plug: Yes
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (8) 5-15R
- Circuit Breaker (amps): 15
- Transformer Accommodation: (6) Yes
- Outlet Orientation: Single row of 5, plus a second row of 3 for transformer accommodation
- Outlet Safety Covers Detail: Includes built-in sliding outlet safety covers
- Diagnostic LED(s): Yes
- Switches: Combination AC circuit breaker and 2-position red illuminated on/off power switch
- Audible Alarm: Audible alarm sounds to indicate damage to suppression components
- Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
- AC Suppression Joule Rating: 3240
- AC Suppression Response Time: < 1 ns
- Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- UL1449 Let Through Rating: 330/400/400
- EMI / RFI Filtering: Up to 40 dB
- Automatic Shut-Off: Yes
- Telephone/DSL Protection Details: 2 line
- Cable (Coax) Protection: Yes
- Cable (Coax) Protection Details: 1 line (2.2 GHz Bandwidth)
- Network (Ethernet) Protection: Yes
- Telephone/DSL Protection: Yes
- Material of Construction: Plastic
- Power Cord Color: Gray
- Housing Color: Gray
- Mounting Holes or Slots: Yes
- Slot or Hole Mount Measurement (Center to Center): Distance between horizontal tabs = 75 mm; Distance between vertical tabs = 41.6 mm
- Outlets Measurement (Center to Center): Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
- Receptacle Color: Gray
- Shipping Dimensions (hwd / in.): 11.41 x 8.66 x 2.04
- Shipping Weight (lbs.): 3.00
- Unit Dimensions (hwd / in.): 4.860 x 9.550 x 1.510
- Unit Weight (lbs.): 2.02
- Input Cord Color: White
- Network Compatibility: 100 Mbps (Fast Ethernet)
- Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed
- Product Compliance: FCC Part 68; RoHS
- Product Warranty Period (Worldwide): Lifetime limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
