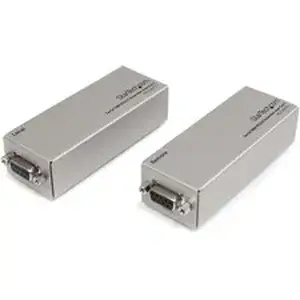

Startech STC RS232EXTC1 .com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) - 2 x Network (RJ-45) -

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:RS232EXTC1
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
Marketing Information:The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.

The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.

Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Serial Extender

Technical Information

---

Maximum Extended Range:3280.84 ft
Maximum Data Transfer Rate:230 kB/s

Interfaces/Ports

---

Network (RJ-45):Yes
Number of Network (RJ-45) Ports:2

Power Description

---

Input Voltage:230 V AC

Physical Characteristics

---

Color Family:Silver
Product Color:Silver
Product Material:Steel
Height:0.9"
Width:1.3"
Length:3.6"

Miscellaneous

---

Package Contents:

• RS232 Extender Local Unit
• RS232 Extender Remote Unit
• 20cm Null Modem cable (DB-9 Male to Male)
• Power Adapter
• User Manual

Additional Information:

• Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located
• Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
• Pure hardware design, no software or drivers required ensuring a simple plug and play installation

Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty:2 Year
