Pre Order
Expected availability: 1-2 weeks
Condition: New

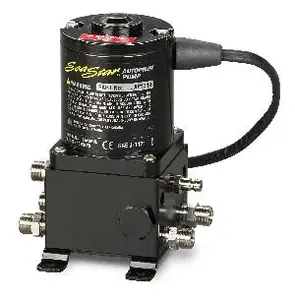

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
Long life DC Motor (i.e. long life brushes)
Compact design
Simplified installation
Low power consumption
ABYC, CE?s and J1171 compliant
Superior corrosion resistance
Quiet operation
All mounting bracket displacement included
| Voltage | 12 volt |
| Fittings | Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF |
| Wire Details | |
| Length | 24 in |
| Gauge | 12 awg |
| Connector | None - Bare Leads |
| Oil Compatibility | Seastar Steering Fluid (MIL 5606) |
| Weight | 4.9 lbs (2.2 kg) |
| Pump Sizes | Type 1: 60 in3/min (no-load) |
| Type 2: 100 in3/min (no-load) | |
| Maximum Pressure | 1000 psi |
| Typical Current Draw | 12V Type 1: 4 ? 8 amps |
| (Depending on Application) | 12V Type 2: 5 ? 11 amps |
| Ram Capacity | |
| Type 1 | 4.9 in3 - 14 in3 |
| Type 2 | 14 in3 - 21 in3 |
Dometic Marine Us Corp AP1233 Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min
