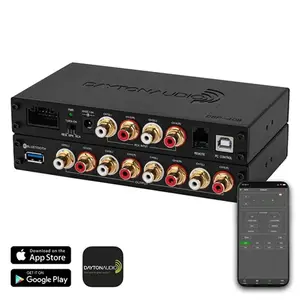

Dayton Audio(r) DSP-408 4X8 DSP DIG SIG PRCSR

• DSP (Digital Signal Processor) with EQ Crossovers, Time Alignment, and Mixing can be used for home or car audio right out of the box;• Frequency response: 20 Hz to 20 kHz for faithful sound reproduction ;• Real-time signal processing for ultimate control;• Complete audio customization for application-specific installations;• Easy-to-use Windows(R)-based GUI (Graphical User Interface) - easily controlled via a Windows(R) application developed by Dayton Audio(R) featuring all the tools you could need to make your audio system sound its very best;• Software features - 10-band parametric equalizer per channel; high- and low-shelf EQ per channel; variable crossovers: high/low/band-pass slopes 0 - 24 dB; Linkwitz Riley/Butterworth/Bessel; time delay: 0 to 277 cm or 8.1471 ms adjustable in 1 cm steps; input/output mixing to customize signal path; phase adjustment; customizable name/ID for each preset; minimum/maximum voltage protection; load, save, recall, or delete preset files; software controllable level attenuation on the preamp and high-level inputs; reverse voltage protection; and mute circuit and delay;• Android(TM) and iOS(TM) app - connect to your mobile device using the optional Dayton Audio(R) DSP-BT4.0 Bluetooth(R) dongle (sold separately) to completely tune your DSP via the mobile DSP-408 app ;• Inputs - 4 RCA preamp inputs, 4 channel high-level inputs, 1 USB B for PC control, 1 USB A for DSP-BT4.0 Bluetooth(R) dongle connection, 1 RJ11 for DSP-NRC remote connection, and one 12-volt DC power input jack;• Outputs - 8 RCA preamp outputs with fully adjustable 10-band parametric EQ;• Optional Dayton Audio(R) DSP-NCR wired remote available (sold separately);• Dimensions: 6.53 in. W x 1.02 in. H x 4.55 in. L;• 5-year limited warranty;• Includes 1 DSP-408 processor, 1 power adapter (12 volts, 1.5-amps), 1 high-level/power input harness (16 pin), 1 USB A to B cable, 2 mounting brackets, 4 mounting bracket machine screws, 4 mounting screws, 4 rubber cushion pads, introduction card, and user manual;
