General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT

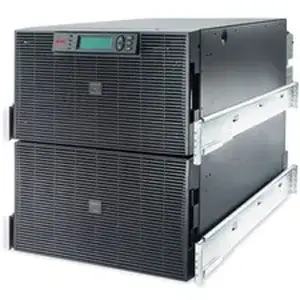

Product Name:Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Marketing Information:
APC Smart-UPS RT 20kVA Tower/Rack-mountable UPS reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. This UPS features hot-swappable batteries which ensures clean, uninterrupted power to protected equipment while batteries are being replaced. It also increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
Receptacle Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
- IEC 60320 C19
- IEC Jumper
Receptacle Detail:
- 1 x Hard Wire 3-wire
- 1 x Hard Wire 5-wire
- 8 x IEC 60320 C19
- 2 x IEC Jumper
Number of Battery & Surge Outlets:21
Overload Protection:Yes
Power Description
Load Capacity (VA):20 kVA
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Sine Wave
Management
Network Management:SNMP Manageable
Bypass Switch:
- Automatic
- External (Optional)
- Internal
- Manual
- Static
Emergency Power OFF:Yes
Interfaces/Ports
Serial Port:Yes
Network (RJ-45):Yes
Modular Slots:SmartSlot
Battery Information
Battery Characteristics:Maintenance-free/Sealed/Spill Proof
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:2.50 Hour
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Rack Height:12U
Height:21"
Width:17"
Depth:30.4"
Weight (Approximate):546.15 lb
Miscellaneous
Package Contents:Smart-UPS RT 20kVA Tower/Rack-mountable UPS CD with softwareRack mounting support railsSmart UPS signalling RS-232 cableUser manualWeb/SNMP management card
Country of Origin:Philippines
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
