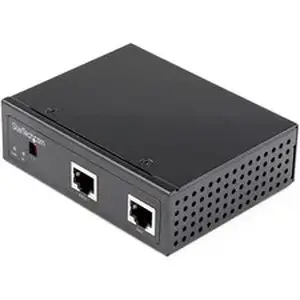

Startech STC POESLT1G48V .com POESLT1G48V PoE Splitter - 48 V DC Output - 1 x PoE+ Input Port(s) - 1 x Ethernet, 1 x Ter

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

• Security (card swipe or proximity boxes)
• Environmental monitoring (temperature/moisture sensors)
• Telco (analog interface systems/conversion)

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:PoE Splitter

• 1 x Ethernet
• 1 x Terminal Block

• POESLT1G48V PoE Splitter
• Quick-Start Guide
• Hardware Mounting Kit
• Terminal Block

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN 60068-2-6
• EN 60068-2-27
• EN 60068-2-32
• EN60950-1

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
