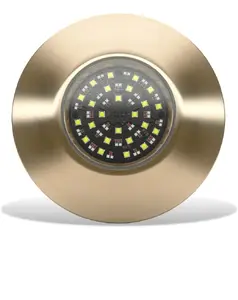

Lumishore EOS TIX804 Interchangeable Thru-Hull Mount RGBW LED
Model: EOS TIX804 / 010-04532-00The TIX804 delivers a powerful 12,000 verified fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Suitable for transom, side and bottom mounting.
Specifications| EOS FULL COLOR CHANGE (RGBW) | |
| LUMENS | 27,000 |
| VERIFIED FIXTURE LUMENS (WHITE) | 12,000 |
| NUMBER AND TYPE OF LED | White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 8.8A/4.4A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED | YES |
| COLOR CYCLE w/SPEED ADJUST | YES |
| COLOR SWEEP w/SPEED ADJUST | YES |
| CUSTOMIZABLE FAVORITES | YES |
| FIXED & RANDOM STROBES | YES |
| PROGRAMMABLE SCENES | YES |
| WI-FI CONTROL (APP) | YES |
| SOUND-TO-LIGHT | YES |
| BRIGHTNESS ADJUST | YES |
| AUTO LIGHT DISCOVERY & SETUP | YES |
| WARRANTY | 3 YEARS |
Garmin Usa, Inc 010-04532-00 Lumishore EOS TIX804 Interchangeable Thru-Hull Mount RGBW LED
