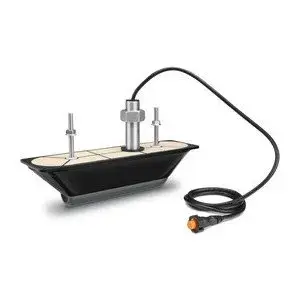

Garmin GT30-TH Thru Hull
Scanning Transducer
Model: 010-01961-10Perfect for the shallow water fisherman who want CHIRP ClearVu and CHIRP SideVu scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.
The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVu) and 500 ft left and right (SideVu); an operating frequency of CHIRP 455/800 kHz1; for hull deadrises less than 5 degrees. Pair it with your GCVTM 10 scanning sonar module.
Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) | |
| Power | |
| ClearVu/SideVu | 500 W |
| Beamwidth | |
| ClearVu | 1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz |
| SideVu | 1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz |
| Maximum depth | |
| ClearVu | 750 ft |
| SideVu | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 5 ft. + 30 ft. y-extension cable |
| Supported deadrise/Transom angles | Up to 25 deg deadrise |
Garmin Usa, Inc 010-01961-10 Garmin GT30-TH Thru Hull Scanning Transducer
