General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MXT105MMHQ
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

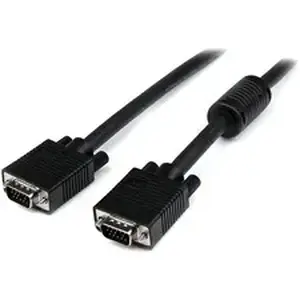

Product Name:15 ft Coax High Resolution Monitor VGA Cable - HD15 Male/Male
Marketing Information:The MXT105MMHQ High Resolution VGA Cable (15ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Video Cable
Technical Information
Cable Type:Coaxial
Cable Characteristic:Extension Cable
Cable Length:15 ft
Connector Type on First End:HD-15 - Male
Connector Gender on First End:Male
Connector on First End Details:1 x HD-15 - Male
Connector Type on Second End:HD-15 - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x HD-15 - Male
Connector Plating:Nickel
Device Supported:
American Wire Gauge:28 AWG
Supported Resolution:1920 x 1200
Features:
- Molded
- EMI Protection
- Strain Relief
- Ferrite Bead
Physical Characteristics
Color Family:Black
Product Color:Black
Weight (Approximate):1.21 lb
Miscellaneous
Package Contents:
- 1 x 15 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
- 2 x Nuts
Additional Information:
Features:- Ideal for high resolution monitors (1024x768 and above)
- Triple-coaxial + twisted-pair wire for crystal clear display
- Impedence matched at 75 Ohms for full brightness and vibrant picture color
- Ferrite core eliminates EMI interference
- Molded connector ends with strain relief
Compatibility:
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:China
Warranty
Limited Warranty:Lifetime
