9 Available
Condition: New
Lumitec Razor Light Bar Spot Light, White Housing
Model: 101587Sleek. Streamlined. Powerful. Introducing Razor - The World's FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs - typically with only minor modification to production tooling. When mounted facing forward, Razor's long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunIn addition to clean lines and a low profile, following Lumitec's thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer's light bars in a 'pod'. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Available with two beam patterns (spot or flood) ensures the light goes where you need it most.wales and surrounding areas with more than 10,000 night-piercing lumens.
In addition to clean lines and a low profile, following Lumitec's thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer's light bars in a 'pod'. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.
Specifications| White | |
| LUMENS | 10,000+ TRUE measured lumens |
| VOLTAGE | 10-30vDC |
| 12VDC Amps | 9A |
| 24VDC Amps | 4.2A |
| Rated Watts | 108W |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 |
| Timed Toggled Protocol (TTP | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| Mounting Hole Diameter | N/A |
| Height | 1.5in (3.81 cm) |
| Width | 18in (45.72cm) |
| Depth | 3.5in (8.89 cm) |
| Diameter | N/A |
| Housing | White |

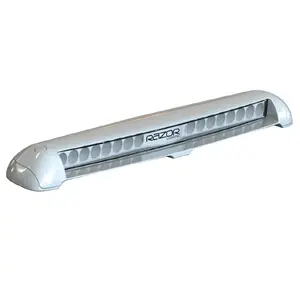

Razor Light Bar - Spot - Flush Mount - White
The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs – typically with little or no modification to production tooling.
Razor is designed to drop into a contoured pocket molded into a hardtop, radar arch, brow, or other surface. Alternatively, use Razor’s surface mount kit for a sleek, low profile installation on existing flat or slightly crowned tops. Mount forward or aft, horizontal or downward facing. In all installations Lumitec’s careful thermal analysis and self-venting design puts an end to ‘pod’ mounted lightbars, which can overheat and damage surrounding composites in hard tops. Flood and spot/flood beam patterns ensure the light goes where you need it.
Advanced Thermal Management
Razor has been designed and analyzed as a complete system – with careful conside
Lumitec Llc 101587 Lumitec Razor Spot Light Bar Flush Mount White LED White Housing 12/24v
