General Information
Manufacturer:Black Box Corporation
Manufacturer Part Number:EVNSL674-0006
Manufacturer Website Address:http://www.blackbox.com
Brand Name:Black Box
Product Line:GigaTrue

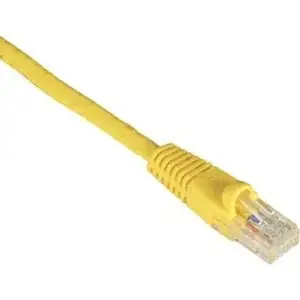

Product Name:GigaTrue Cat.6 UTP Patch Network Cable
Marketing Information:
- Use in our Black Box® GigaTrue® channel or mix with components from other manufacturers.
- Also available in 25-packs.
Product Type:Network Cable
Technical Information
Cable Type:Category 6
Cable Characteristic:Patch Cable
Cable Length:6 ft
Connector Type on First End:RJ-45 Network - Male
Connector on First End Details:1 x RJ-45 Network - Male
Connector Type on Second End:RJ-45 Network - Male
Connector on Second End Details:1 x RJ-45 Network - Male
Conductor:Copper
Shielding:No
Jacket Type:CM
Device Supported:
- Patch Panel
- Wallplate
- Network Device
American Wire Gauge:24 AWG
Data Transfer Rate:1 Gbit/s
Boot Type:Snagless
Features:
- Stranded
- Molded
- Near End Cross Talk (NEXT)
Physical Characteristics
Product Color:Yellow
Jacket Material:Polyvinyl Chloride (PVC)
Miscellaneous
Additional Information:
- Perfect for full broadband and baseband video
- Meets or exceeds all crosstalk and return loss specifications
- Full Power Sum performance
- Provides full-duplex operation
- Meets balance requirements (LCL/LCTL)
- Improved attenuation provides cleaner data and video transmissions
- Attenuation: 23.9 dB at 100 MHz, 39.6 dB at 250 MHz
- Cable Diameter: 0.22"
- Delay Skew (Maximum): 25 ns/100 m (328 ft.)
- Impedance: 100 ± 15 Ohms at 1-250 MHz
- Mutual Capacitance: 56 pF/m (maximum)
- NEXT: 44.3 dB at 100 MHz, 38.3 dB at 250 MHz
- PS-NEXT:42.3 dB at 100 MHz, 36.3 dB at 250 MHz
- Resistance (Maximum): 9.38 ohms/100 m (328 ft.)
Applications:
- 1000BASE-T
- 100BASE-TX
- 100BASE-VG
- 155-Mbps ATM
- 100-Mbps FDDI/CDDI
Certifications & Standards:
EIA/TIA-568-B.2-1
Country of Origin:China
Warranty
Limited Warranty:Lifetime
