General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCIUSB3S22
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

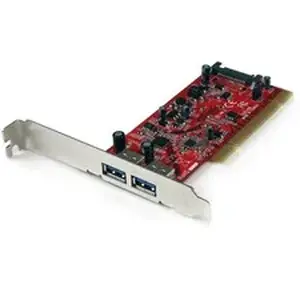

Product Name:2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
Marketing Information:
The PCIUSB3S22 2-Port PCI to USB 3.2 Gen 1 Card enables you to connect USB 3.2 Gen 1 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.2 Gen 1 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.2 Gen 1 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.2 Gen 1 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.2 Gen 1 card is backed by lifetime warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1
Product Type:USB Adapter
Technical Information
Host Interface:PCI-X
Media & Performance
Data Transfer Rate:5 GB/s
UASP Support:Yes
Interfaces/Ports
Total Number of USB Ports:2
Number of USB 3.2 Ports:2
Number of SATA Ports:1
Software
Operating System Supported:
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2003
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
Physical Characteristics
Color Family:Red
Product Color:Red
Form Factor:Plug-in Card
Height:2.2"
Width:0.4"
Length:4.8"
Thickness:400 mil
Weight (Approximate):2.12 oz
Miscellaneous
Package Contents:
- 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
- 1x Low Profile Bracket
- 1x Driver CD
- 1x Instruction Manual
Platform Supported:PC
Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Certification:
Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:Lifetime
