General Information
Manufacturer:Eaton Corporation
Manufacturer Part Number:B150-1A1-HDMI
Manufacturer Website Address:https://tripplite.eaton.com/
Brand Name:Tripp Lite by Eaton
Product Model:B150-1A1-HDMI
Product Name:B150-1A1-HDMI Video Console/Extender

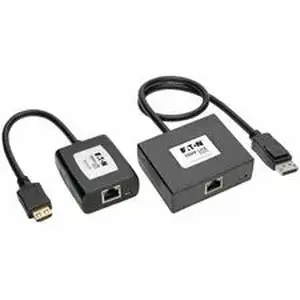

Marketing Information:Active extender kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or TV up to 150' away. Kit is capable of extending a high-definition 1080i (60 Hz) signal up to 150' and a 1080p (60 Hz) signal up to 125'. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal for quick reference. Universal design is compatible with all operating systems. Hassle-free functionality does not require an external power supply for immediate use. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Kit supports 24-bit True Color (8 bits per channel) and stereo audio. Extender kit is perfect for digital signs, trade shows, presentations, classrooms, churches and more.
Packaged Quantity:1 Each
Product Type:Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:150 ft
Video
Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080
Interfaces/Ports
Network (RJ-45):Yes
HDMI Out:Yes
USB:Yes
DisplayPort:Yes
Number of Network (RJ-45) Ports:2
Number of USB Ports:2
Number of HDMI Outputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6a
Physical Characteristics
Color Family:Black
Product Color:Black
Miscellaneous
Package Contents:
- Transmitter Unit
- Receiver Unit
- 2 x USB Micro-B Cables, 3 ft.
- Owner's Manual
Country of Origin:Taiwan
TAA Compliant:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:1 Year
Additional Warranty Information:
1-year limited warranty
