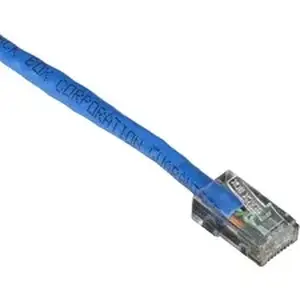

Black Box Corporation BBN EVNSL6210020 Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 20f

Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel with our 550MHz Stranded Ethernet Patch Cable. It provides full-duplex operation for next-generation applications and meets balance requirements (LCL/LCTL), resulting in better transmission.

The improved attenuation provides cleaner data and video transmissions. Our rugged PVC jacket stands up to long-term use and is perfect for full broadband and baseband video.

• Patch Panel
• Wallplate
• Network Device

• Stranded
• Non-booted
• Rugged
• Near End Cross Talk (NEXT)

• Full Power Sum Performance
• Impedance: 100 ± 15 Ohms at 100 MHz, 100 ± 22 Ohms at 100-550 Mhz
• Meets balance requirements (LCL/LCTL)
• Attenuation:23.6 dB at 100 MHz, 39.1 dB at 250 MHz
• Delay Skew (Maximum): 25 ns/100 m
• Mutual Capacitance (Maximum): 56 pF/m
• NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
• PS-ACR: 32 dB (Typical) at 100 MHz
• PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
• Resistance (Maximum): 9.09 ohms/100 m (328 ft.)
• Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
• Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 Mhz

Applications:

• 1000BASE-T
• 100BASE-TX
• 100BASE-VG
• 155-Mbps ATM
• 100-Mbps FDDI/CDDI

EIA/TIA-568-B.2-1
